Zero-Defect Myth? Digital-Twin Quality Control for LED and LCD Manufacturing” Units

Defects are the nemesis of every display line—whether you build LED vs LCD modules, one bad pixel can sink a shipment. The 1970s zero-defect mantra now meets 2025 realities: tight margins, demanding buyers, and production data streaming by the terabyte. A live digital twin—your factory’s real-time avatar—turns that data into predictive control, catching a blip long before it becomes a yield killer.

1. LED vs LCD: Two Technologies, Different Defect Profiles

  • LCD pain points: liquid-crystal alignment, glass-substrate warpage, backlight bleed.

  • LED headaches: die-attach voids, solder-paste slumping, color-bin drift.

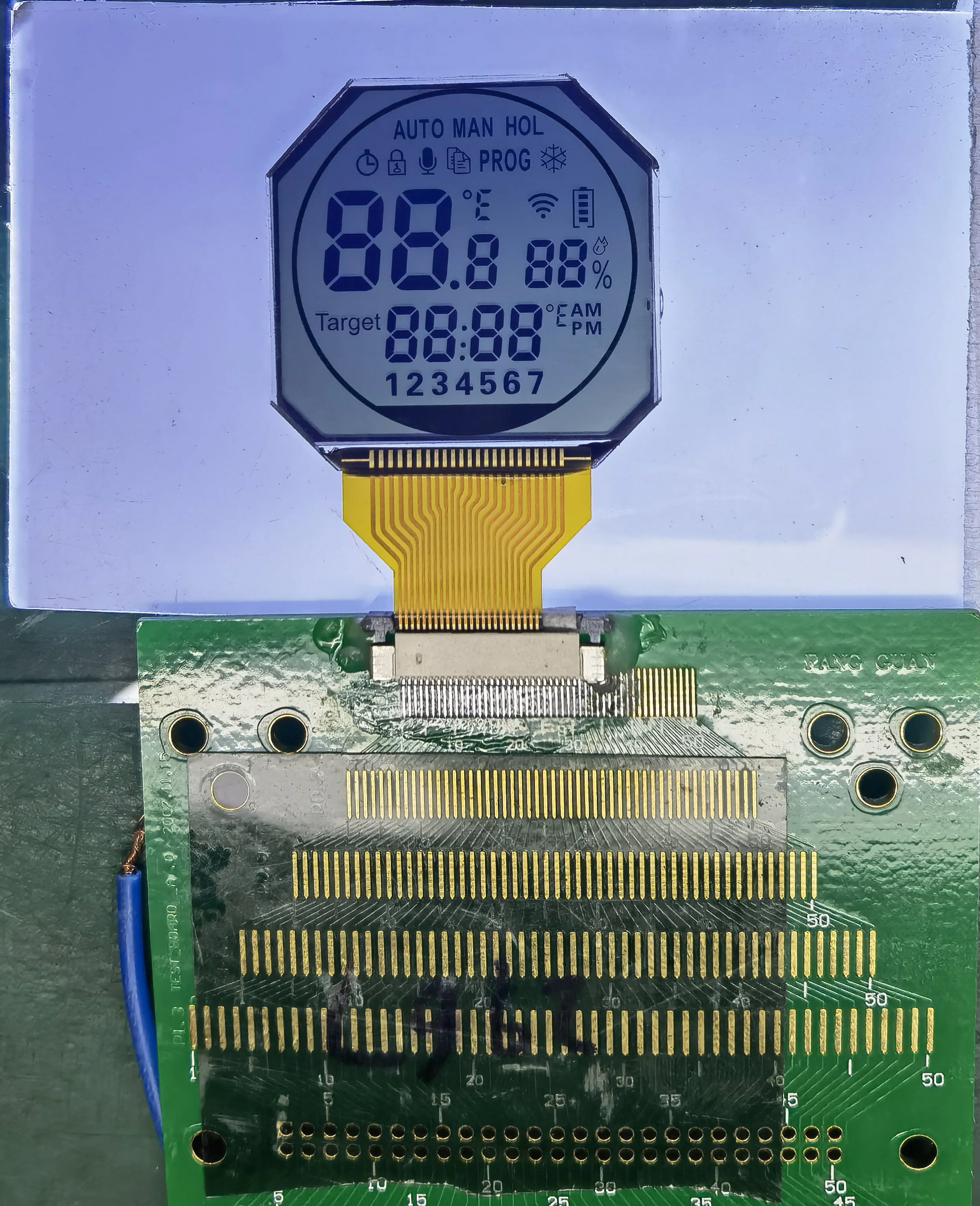

LED vs LCD Manufacturing: Digital-Twin Strategies for Zero-Defect Displays

Because LED vs LCD lines fight distinct defect modes, a one-size-fits-all quality plan fails. Digital twins learn each process separately, flagging a 5 °C drift in reflow zone 3 for LEDs or predicting glass tension spikes that crack LCD panels.

2. Digital Twin Basics—From Sensor to Simulator

A manufacturing twin is more than a static CAD model. It breathes real-time sensor data—temperature, vibration, humidity, even operator hand motion—into physics engines and machine-learning layers to forecast yield on the fly.

Key Components

Layer Purpose LED vs LCD Example
Data Fabric
 Ingests PLC, MES, ERP streams Edge cameras feed die-bond images (LED)
and cell-gap metrics (LCD)
Physics Model
 Finite-element heat & stress analysis Solder-joint thermal flow (LED)
vs. glass-bow simulation (LCD)
Analytics Engine
 Predicts yield, energy, takt time Gradient-boosted trees forecast lot yield
for LED vs LCD lines
Visualization
 3-D dashboards & heat maps Real-time mura heat map (LCD)
alongside void density map (LED)
Closed Loop
 Auto-corrects out-of-spec events PID tweak lowers reflow temperature
before solder voids appear

3. Data Pipelines That Keep a Twin Alive

A single display line can dump gigabytes per shift—camera frames, laser-scatter profiles, temperature logs. Edge gateways cleanse, encrypt, and stream packets to the cloud in milliseconds.

OT–IT Convergence

MQTT brokers and OPC UA bridges finally let legacy PLCs speak cloud APIs. Without this bridge, any LED vs LCD digital-twin project drives blind.

Always-On Edge Analytics

Latency kills when a reflow furnace overshoots by 20 °C. Edge devices classify every image frame locally, nudging belt speed while archiving full-resolution data for trend mining.

4. LED vs LCD Use Cases in One Twin Platform

Under one roof, imagine mini-LED backlight lines beside TFT-LCD laminators:

  • Reflow Optimization (LED): The twin calibrates solder profiles, trimming voids by 18 %.

  • Vacuum Lamination (LCD): It tunes pressure curves, cutting bubble defects by 12 %.

  • Shared Analytics: A single rules engine shifts between LED vs LCD recipes, halving NPI ramp-up time.

Yield-Prediction Models

Gradient-boosted trees ingest temperature curves and stencil wear, then predict lot yield—recommending a stencil swap or a die-attach paste change before scrap piles up.

Visual-Inspection Twins

Vision AI scans every LCD pixel column for mura and every LED pad for voids. The twin back-traces anomalies to upstream variables faster than a Six-Sigma veteran on espresso.

5. Spotlight: Changchun Fangguan Electronics Technology Co., Ltd.

  • Campus: 25 000 m² with a 4 280 m² class-leading cleanroom.

  • Capacity: 50 000 m² LCD panels + 20 million LED modules annually.

  • Certifications: ISO 9001, ISO 14001, IATF 16949, plus national “small giant” accolades.

Factory Edge in the Twin Era

By layering a digital twin over automated SMT lines, Fangguan shaved scrap by 18 % and raised OEE by 12 % across mixed LED vs LCD production.

6. Implementation Roadmap

  1. Define the North-Star KPI—e.g., first-pass yield for LED vs LCD displays.

  2. Map the Data Fabric—catalog sensors and historian logs.

  3. Build the MVP Twin—start with one critical station, such as AOI for mini-LED.

  4. Iterate & Validate—run A/B cohorts until scrap drops 10 %.

  5. Scale Horizontally—clone the pattern across the entire LCD lamination hall.

In Fangguan’s automotive-cluster project, this roadmap cut debug cycles by 45 %, winning a multi-year tier-1 deal.

7. Common Pitfalls and How to Dodge Them

  • Boiling the Ocean: Attack one defect at a time.

  • Dirty Data: Calibrate sensors or the twin learns junk.

  • Shadow IT: Loop in cybersecurity early—ransomware and reflow ovens don’t mix.

  • Change Fatigue: Publicize quick wins so operators turn into evangelists.

8. Future Horizons: AI-Augmented Twins & Zero-Trust Security

With GPU inference times plunging, twins will evolve from advisory copilots to autonomous control towers—tweaking solder-paste viscosity or LCD fill speed in real time. Zero-trust networks will sandbox every PLC packet as factories open more IIoT doors. Even as hybrid mini-LED-backlit LCDs blur the LED vs LCD line, a robust twin adapts without code rewrites.

Conclusion

The zero-defect ideal is no myth; it’s a live KPI tracked by a digital twin that never sleeps. Whether your plant cranks out nano-scale LED chips or intricate LCD modules, a virtual mirror converts quality firefighting into proactive mastery. Changchun Fangguan Electronics Technology Co., Ltd. already pairs cleanrooms with a twin-ready data backbone—helping partners cross the finish line first in the LED vs LCD race.

FAQs

  1. How long does a basic digital-twin pilot take?
    Most Fangguan pilots show ROI in three months.

  2. Do I need new machines?
    No. Simple IIoT retrofits bring 1990s presses into the twin loop.

  3. Is my production data safe in the cloud?
    Zero-trust principles, role-based access, and end-to-end encryption keep data secure.

  4. Can one twin handle both LED and LCD lines?
    Yes. Recipe-specific models let a single platform juggle mixed-technology plants.

  5. What if delivery lead time—not defects—is my pain point?
    Twins optimize scheduling and logistics too, often shaving days off cycle time.
